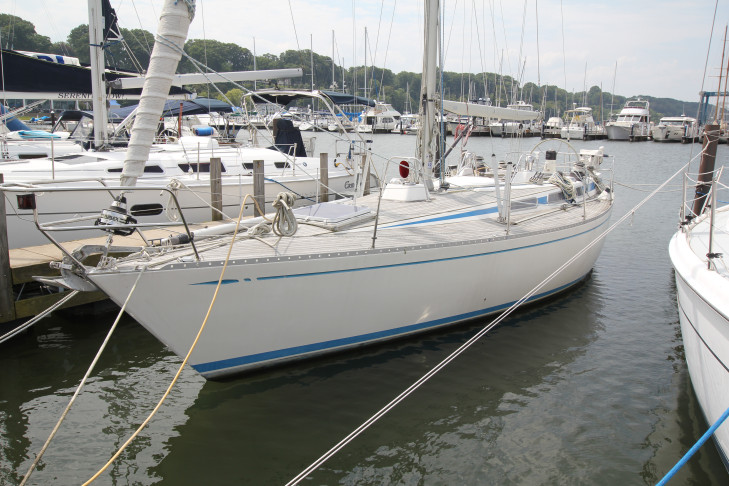

CORINNON

Hull

Solid fiberglass, white gel coat hull.
Single light blue sheer stripe (painted 2020).
Single light blue waterline stripe (painted 2020).
Lead with antimony fin keel.
Spade rudder.
Longitudinal and latitudinal top hat stringers to stiffen the hull.
Aluminum plate in bilge to support the mast step.

Deck

Fiberglass deck, cored with closed cell foam.
Teak overlay, screwed down, refurbished (2019).
Stainless steel bow and stern rails.
Stainless steel stanchions.
Stainless steel drop down swim ladder.
1 x 19 stainless steel wire double lifelines (2017).
Pedestal steering with stainless steel wheel.
Elkhide cover over wheel (2020).
Mooring cleats.
Genoa tracks on side decks.
Main traveler track on bridge deck.

Winches

All winches completely disassembled, cleaned and greased (2018).
2 x #55, Lewmar, self tailing, primary.
4 x #42, Lewmar, self tailing secondary and utility.
1 x #E40i, Selden electric, in and out, main halyard winch.

General arrangement

Accommodations

Sleeps a total of 8. 2 in each of the sleeping cabins, 2 on the saloon settees and 2 in the saloon pilot berths. Hand rubbed, mat varnished Burmese teak interior with teak and holly cabin sole. All interior woodwork re-varnished with Epifanes satin finish (2017 to 2019). Vinyl overheads.

Forward Cabin

Located in the bow with 2 folding aluminum pipe bunks.
Storage under each bunk.
Chain pipe for anchor chain and rode.

Head

Located aft of the forward cabin and on the starboard side.
Jabsco head (2021).
Sink with hot and cold pressure water.
Telephone type shower.
Electric shower sump pump.
Large lockers opposite on the port side.

Main Saloon

2 x straight settees, 1 to port and 1 to starboard.
All cushions and bunk mattresses replaced (2019).
Centerline table with drop down leaves port and starboard.
2 pilot berths, 1 outboard of each settee.
Access to forward cabin port side.

Galley

Aft of the saloon and on the port side.
Adler Barbour cold plate fridge driven by 12 volt compressor, air cooled.
Eno 3 burner propane stove with oven.
Propane tank located in cockpit.
Propane pressure gauge and other fitting replaced (2018).
Sink with hot and cold pressure water.

Navigation Station

Aft of the saloon and on the starboard side.
Forward facing with chart table and storage under.

Aft Cabin

Accessed on the starboard side.
Double berth to port.
Single berth to starboard.
Seat between the bunks.

Engine

Volvo D2-40B diesel, fresh water cooled, engine 40hp (new 2011).
Volvo transmission, 2.14:1.
Racor fuel filters.
PSS drip-less shaft seal.
2 x blade Max prop disassembled and serviced (2019).
Cutlass bearing replaced (2019).

Plumbing and ventilation

2 x manual gusher bilge pumps, 1 in main cabin, 1 in aft cockpit.
1 x electric bilge pump with automatic and manual controls.
1 x Jabsco manual head (2021).
Hot and cold pressure water with new electric Jabsco pump (2017).
Telephone style hot and cold water shower in cockpit.
6.4 gallon Isotemp water heater, heated by a 120 volt supply or via a heater exchanger off the engine (2019).
Dorade vent with stainless steel cowl and stainless steel protective bar over, 1 forward of the mast, 1 each side of the companionway.
Mushroom vents, 1 over forward head, 1 each side of deck coaming over aft cabin (2018).

Electrical

12 volt DC house system.
120 volt shore power AC system.
110volt outlets in galley, head and aft cabin.
AGM Lifeline house batteries (2021).
1 x 12 volt group 27 engine start battery.
120 volt AC Heart interface MS 60/12 battery charger/inverter.
1 x 30 amp shore power plug in aft cockpit.
115amp alternator.
Shore power cable.

Electronics

Suunto D-165 compass at pedestal.
Garmin GPS map 4210.
Icom IC-M422 VHF radio.
Autohelm autopilot ST5000.
B&G H3000 electronics with:
Depth sounder.
Knotmeter.
Wind instruments in cockpit with repeater in navigation station.
Sony stereo and CD player with speakers in cabin and cockpit.

Rigging

Nautor built anodized aluminum mast and boom.

Double set of spreaders.
Strong mainsail track system (2021).
Lazy jacks for mainsail (2021).

Nautor built anodized aluminum spinnaker and jockey poles.

Stainless steel rod rigging (2021).

1 x 19 stainless steel wire running backstays.

Removable inner forestay.

Selden aluminum shroud protectors.

Furlex 300S headsail roller furler.

Navtec hydraulic backstay adjuster rebuilt (2018).

Hall solid boom vang.

Running rigging partially replaced (2019).



Sails

Main, Quantum, (2022).
Jib, Quantum, Dacron carbon, furling, (about 2008) fair condition.
Genoa, medium #1, racing, North, Kevlar composite, very good condition.
Staysail, windfinder, Sobstad, Dacron, very good condition.
Radial spinnaker, Ulmer, 0.5 ounce, as new.
Radial spinnaker, Sobstad, 0.75oz, as new.
Asymmetric spinnaker with snuffer, Ulmer, 0.5oz, good condition.

Additional equipment

Emergency tiller.

Zodiac liferaft.

Cockpit cushions (2019).

Dodger forward end of cockpit and companionway (2017).

Bimini (frame only).

Lofrans, vertical capstan, electric windlass with “up” foot control.

45lb CQR anchor.

Danforth anchor.

25' x 5/16" anchor chain (2017).

100' x 3/4" anchor rode (2017).

4 x fenders.

4 x docklines.

4 x life preservers.

1 x man overboard life sling.

Orion distress flares kit (2017).

3 x fire extinguishers.

1 x Halon 1301 engine compartment fire extinguisher.

Ardic 04-D diesel forced air cabin heater.

Outboard bracket on stern rail.

Radar reflector (2019).

Windex (2017).

2 x boat hooks.

Medical kit (2018).

Bosun's chair.

4 x winch handles, 2 double handed, 2 single handed.

3 snatch blocks.

Spare lines.

Spare parts for rigging, plumbing, engine, propeller and other.

Sunbrella covers for mainsail (2022).
Sunbrella cover for wheel.
Sunbrella covers for winches and hatches (2019).
Lee cloths for each bunk (2018).
West Marine, stern rail mounted, BBQ grill.
Nautor and equipment manuals with drawings in binders.
