Yeoman Yachts is proud to announce their involvement in the sale of the following yachts over recent years:

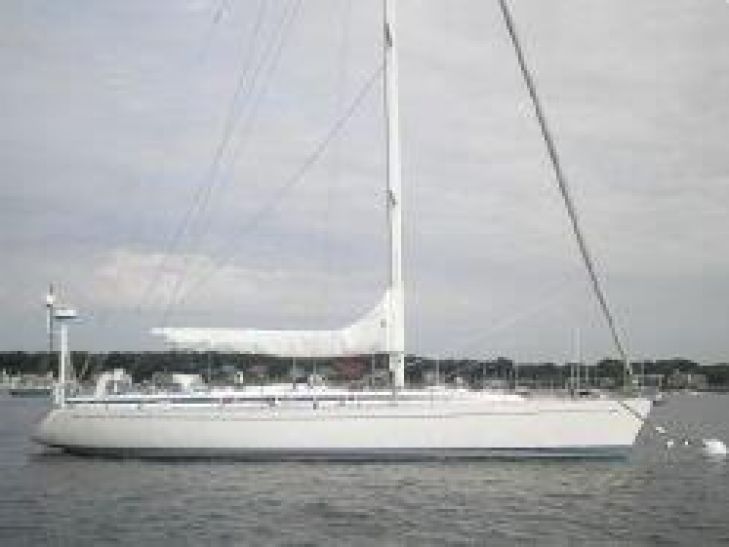

Swan 56 - NEVA - Sold by Yeoman Yachts

ModelSwan 56
Year1998
LocationWestbrook, CT
Hull Number004
LOA56
Asking PriceUSD 525,000

NEVA is in spectacular condition! This is the first time since new that NEVA is available to purchase on the brokerage market.

In the first couple of years NEVA was sailed in New England in the summer and the Caribbean in the winter. Since then, NEVA has not left New England waters. Each winter the rig comes out and NEVA is place into a heated shed. Her project manager has been with NEVA from new and he pampers this yacht. For the past few years NEVA has been sailed just a few days each summer. She is lightly used and together with the care and attention NEVA has received she is highly recommended.

HULL

Solid fiberglass, white gel coat, hull.
Dark blue waterline and sheer stripes.
Fin keel with "L" type bulb.
Spade rudder.
Hydraulic, drop down transom to form a swim platform.

*** Photo Gallery removed in Print View - See it online at http://www.yeomanyachts.com/sold-yachts/swan-56-neva-2 ***

DECK

Cored fiberglass deck with teak overlay.
Thicker than standard teak overlay was chosen as an option when NEVA was built. With this option, the yachts light use and the appropriate care and attention NEVA has received, the teak decks remain in remarkably good condition.
Teak toe rails.
Stainless steel stem head fitting with 2 anchor rollers.
Stainless steel bow and stern rails.
Stainless steel stanchions with double lifelines.
1 x 19 stainless steel lifelines.
Lifeline gates P and S.
Lewmar electric anchor windlass.
Wash down hose at bow.
Wash down hose in stern inside lazarette.
Cockpit shower inside opening transom.

WINCHES

Lewmar racing winch package, with consistent winch servicing:
2 x Electric 77 self tailing winches for genoa
2 x 54 self tailing (runners)
2 x 77 self tailing (mainsheet)
2 x 90 self tailing with pedestal for racing genoa/spinnsheet/after guy (mid cockpit)
2 x 44 ST for jib, jib lead adjuster, topping lift, and foreguy (mid deck)
3 x 54 ST halyard winches (fwd)

*** Photo Gallery removed in Print View - See it online at http://www.yeomanyachts.com/sold-yachts/swan-56-neva-2 ***

ACCOMMODATIONS

GENERAL ARRANGEMENT

Sleeps 8 in 4 separate sleeping cabins plus 2 more in the main saloon for as total of 10. Varnished, hand rubbed, Burmese teak furniture with teak and holly cabin sole. Vinyl overhead panels.

FORE PEAK CABIN

2 fold up pipe bunks with abundant storage under. Stainless steel rods each side to stow running rigging.

MASTER CABIN HEAD AND SHOWER

Located immediately aft of the fore peak cabin. Head to port and a stall shower to starboard. White gel coat to waist height in the head.Teak grate in floor. White gel coat stall shower. Fresh water Vacuflush head. Electric shower and head sump pump.

MASTER CABIN

Next aft is the full width master cabin with offset double bed to starboard and seat with vanity to port. Lockers outboard, port and starboard and aft above head of bed. Drawer under bunk.

MAIN SALOON

Located aft of the master cabin. Straight settee to port with lockers and entertainment system above. "L" settee to starboard surrounds the dining table. Removable pipe bunks may be fitted over each settee. 2 chairs inboard pinned to the cabin sole when underway. Green leather upholstery. Main companionway on the center-line aft lifts up for excellent access to the engine and generator space.

NAVIGATION STATION

Located on the starboard side aft of the saloon. Forward facing.

GALLEY

Located on the port side aft of the saloon and in the walkway back to the aft cabins. White Corian counters. Teak cutting boards. Corian covers over the sinks for increased work surfaces. Stove and oven outboard with stainless steel sink inboard. Side loading Seafrost fridge (2010) and top loading Seafrost freezer (2010) forward. Microwave aft. Additional access door from the galley to the engine space.

AFT STARBOARD GUEST HEAD

Located aft of the navigation station with walk through to aft starboard guest cabin. Medicine cabinet with mirrored door. Fresh water Vacuflush head. Electric sump pump.

AFT STARBOARD GUEST CABIN

Accessed via a walkway from the saloon on the starboard side. Double bed with drawers under. Hanging locker forward.

AFT PORT CABIN

Located aft of the galley and accessed via the galley. 2 single bunks one above the other. Lockers forward. Second companionway between the guest cabins to the aft cockpit accessing both aft guest cabins.

ENGINE

Yanmar 4J2-UTBE 95HP.
3 blade Maxprop feathering propeller.

PLUMBING AND VENTILATION

PLUMBING

Hot and cold pressure water in galley and heads.
Hot and cold water deck shower aft.
Deck wash forward and aft.
2 manual bilge pumps.
2 electric bilge pumps.
Water heater.
Black water holding tank, 20 gallons.
Sea Recovery water-maker, 25 gallons/hr.
Sea water foot pump in galley.

VENTILATION

3 dorade vents on deck with 4 chrome plated cowl vents and 1 mushroom vent.
6 deck hatches.
8 opening ports.
2 companionway hatches.
Fans in each cabin.
Eberspacher D7W forced air heater with 3 fans and vents in all cabins and both heads.

ELECTRICAL

115 volt AC and 24 volt DC systems.
115 volt and 220 volt deck plugs via 3kw transformer.
115 volt outlets inside yacht.
Westerbeke 8kw generator located in the aft end of the engine space.
Mass inverter 24/1500W brings 24 volts up to 115 volts.
2 x power cords.
Pre wired for any future airconditioning system.
Mastervolt, charge master, battery charger 24/80-3.
House battery bank.
Engine start battery.
Generator start battery.
Battery capacity meter DDC 4000.

ELECTRONICS

B&G autopilot with MFD at helm.
B&G Hercules instruments.
2 x B&G MFDs at navigation station.
5 x B&G repeaters in cockpit.
4 x 20/20 displays at mast under goose neck with selector buttons in cockpit.
B&G Super Halcyon electronic compass.
Furuno PG 1000 compass.
ICOM 604 VHF at nav station.
Uniden VHF in cockpit.
Icom ICM710RT SSB at navigation station with HS50 handset.
Furuno radar.
Northstar GPS.
GPS portable Global Star phone, with mounted docking station, used as primary voice and data connection.
Trane and Trane Mini M Sat Telephone system with data/fax/PC interface.
Dell PC computer with Nobeltec software.

RIGGING

Carbon, Offshore Spars, white painted mast.
Carbon, Offshore Spars, white painted boom.
Reckmann roller furling for headsails.
Navtec rod rigging.
Inner forestay adjustable with ratchet handle.
Aramid checkstays.
2 x carbon fiber spinnaker poles.
Aluminum jockey pole.
Custom bow sprit that attaches stem head fitting for asymetric spinnakers.
Aluminum detachable radar and antenna pole aft.
Navtec hydraulic vang, backstay, outhaul and radar antenna level adjuster.

SAILS

All by Quantum.

CRUISING

Mainsail made of Carbon/Spectra with Dacron skins.
Jib made of carbon/Spectra with Dacron skins.
Spinnaker with snuffer.
Storm jib.
Storm trysail.
Genoa staysail to fit inner forestay.

RACING

Offshore main sail with 2 reefs.
Carbon light inshore main sail.
#1 carbon light genoa.
#1 Kevlar medium/heavy.
#2 genoa.
#3 genoa.
#4 jib.
5 spinnaker, 2 of which are built for the longer spinnaker pole.

ADDITIONAL EQUIPMENT

Removable aft cockpit table with canvas bag.
Bosun's chair.
Hose.
Ensign pole.
4 x fenders.
1 x fender board.
Dodgers for forward and aft companionways.
Bimini.
Sun awning.
Cockpit cushions for both cockpits.
Wheel cover.
Winslow 6 x man liferaft.
MOM Module.
EPIRB.
12 x life jackets.
22" flat panel TV (2009) with full surround sound.
Sea covers for saloon settees.
Padded dining table covers.
Custom bedding for master cabin.
Custom soft furnishings.
Lee cloths for each bunk.
2 x LPG tanks.
Cockpit speakers.
Aquatic radio with XM Skifi in main saloon (2010).
Safety lines on deck.
CQR anchor with 30' chain and rode.
Fortress anchor with chain and rode.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
