Yeoman Yachts is proud to announce their involvement in the sale of the following yachts over recent years:

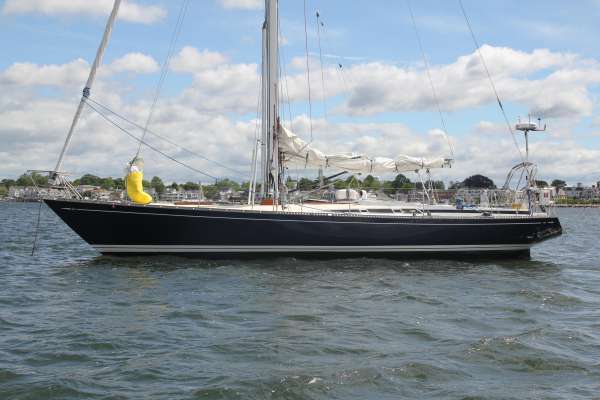

Swan 48 - PATRIOT - Sold by Yeoman Yachts

ModelSwan 48
Year1972
LocationStonington - Connecticut - USA
Hull Number48.002
LOA48 ft 0 in
Asking PriceUSD 140,000

Fiberglass decks and in stunning cosmetic condition. The S&S Swan 48 is one of the all time sailboat classics. These Swans continue to excel in competition as well as provide one of the safest platforms available for the discriminating cruising sailor. PATRIOT has enjoyed a very active life including a long spell in Annapolis, first with the Naval Academy as a midshipman training vessel, and then under private ownership. PATRIOT has recently been up and down the east coast to and from the Caribbean proving she is still a formidable offshore boat. The recent major refit makes PATRIOT a must see.

*** Photo Gallery removed in Print View - See it online at http://www.yeomanyachts.com/sold-yachts/swan-48-patriot ***

Hull

Solid fiberglass hull
Painted dark blue Awlgrip
Below waterline sections blasted to the gel coat and 6 coats of epoxy applied(1999) 2 new coats of epoxy barrier (2012)
Bottom paint 2 coats (2012)
Fin keel
Skeg hung rudder
All bronze seacocks were replaced (2004)

Deck

Cored fiberglass deck
Painter white with sand colored non skid (2011)
Deck plan refitted to lead most running rigging to cockpit(1999)
Stainless steel stem head fitting with with single anchor roller
Teak deck on cockpit sole, cockpit seats and bridge deck only(1999)
Stainless steel bow and stern rails(2004)
Electric Maxwell Capstan windlass (1997) with chain gypsy and rode winch. Up and down electric foot switches (stripped and serviced 2013)
Stainless steel stanchions taller than standard(2004)
Double lifelines(2004)
Stainless steel swim ladder(2004)
Aluminum silver anodised perforated toe rails
Pedestal (painted 2012) wheel steering with stainless steel wheel
Stainless steel guard over pedestal
Stainless steel genoa tracks
Harken mainsheet traveler and car(1999)
Double sheet turning blocks
Lazarette locker on aft deck
2 x 4 gang Antal line stoppers(1999) before secondary winches
Fixed port lights (new glass 2012)

WINCHES

All chrome plated Lewmar(1999)
2 x #64, ST, 2SP, primaries
2 x #50, ST, 2SP, secondaries and halyard
2 x #26, ST, 2SP, halyard and utlility on mast

Interior

*** Photo Gallery removed in Print View - See it online at http://www.yeomanyachts.com/sold-yachts/swan-48-patriot ***

GENERAL ARRANGEMENT

Sleeps 4 in two staterooms plus 5 more in the main saloon. 2 heads. All mechanically fastened woodwork was removed from the interior. The remaining furniture, and the removed furniture was sanded and varnished(2004). Teak and holly cabin sole replaced (2004). Cabin headliner replaced partially in 1997 and completed in 2004.

FORWARD CABIN

Access to the chain locker forward. "V" berth with two lifting bunks. Storage under. Single seat between the bunks. Aft to port is the forward head. Wilcox Crittenden manual head. Opposite the head and on the starboard side are large lockers.

MAIN SALOON

Aft of the "V" berth. Two single pilot berths, one port and one starboard, above and behind the settees. "U" shaped settee to port and a bench settee to starboard. On the centerline is a 2004 built, custom table, with fold down leaves. Cushions were replaced (1997). Main saloon cushions were re-upholstered (2004).

GALLEY

Port side aft of the saloon. "U" shaped. The majority of the cabinetry in the galley was rebuilt (2004). Force 10 propane stove with three burners and oven (2004). Refrigeration compartment rebuilt (2004). Figoboat 12 volt fridge and seperate Frigoboat 12 volt freezer (2004). Additional, and totally seperate, Frigoboat 12 volt freezer in the aft cabin (2004). Double stainless steel sinks (1997). Fresh water foot pump (2004). Salt (raw) water foot pump (2004). Pressure hot and cold water. Orego microwave oven (2004).

NAVIGATION STATION

Starboard side aft of the saloon. Forward facing. Surrounded by the navigation electronics and the 12 volt and 110 volt circuit breakers. Midships is the companionway to the deck. Under the companionway stairs is the engine box. The engine box is custom made to allow for easier access to maintain the engine.

AFT CABIN

Access to the aft cabin is via a passage aft of the Navigation Station and on the starboard side. There are two single bunks, one to port and one to starboard. Between the bunks is a bench seat. Forward of the aft cabin and on the port side is the aft head. Both forward and aft head areas were preped and painted (2004).

Engine and hydraulics

The entire propulsion system was replaced as follows
Yanmar 4JH3 diesel auxiliary engine (2004)
Engine bed replaced (2004)
Propellor shaft (2004)
3 x blade max prop (2004)
Dripless stuffing box (1997)
Bilges in and around engine space painted (2004)
2 x aluminum fuel tanks, 1 x 38 gallons new in 1997, 1 x 59 gallons new in 2004
All fuel lines replaced (2004)
Twin, Racor, 500 micron, fuel filters with independent service (2004)
Exhaust replaced and re-routed to the transom (2004)
Muffler (2004)
1 x Fireboy in engine space (2004)

Plumbing and ventilation

Plexiglass sliding hatch on foredeck
Hatch over main saloon
2 x dorade boxes with cowl vents, 1 each side of mast
2 x dorade boxes with cowl vents, 1 each side of companionway
Hot and cold water deck shower in cockpit(2004)
Spectra water maker (2004) Catalina 1500, 12 volt
4 x water tanks, 3 stainless steel under floor boards near the mast, 1 x 40 gallon bladder tank under the floor in the aft cabin
2 x polyethelene holding tanks, 11 gallons each
"Y" valve for each head
Head discharge to tank or directly overboard
Holding tank deck discharge by vacuum pump
Macerator for each head
Sanitaion hoses replaced (2012)
Heads rebuilt (2012)
1 x electric bilge pump (1997)
2 x manual bilge pumps, 1 in cockpit and 1 under cabin sole, Whale gusher 25
Additional back-up bilge pumps include 2 sump pumps and the safety seacock off the engine intake
Tank Tender

Electrical

12 volt system
110 volt system
Battery bank was replaced with larger bank,Type AGM amp hrs 930 (2010)
Group 31 engine start battery (2010)
Primary wiring and switches (2004)
Zantrex Link 2000R battery management system (2004)
Galvanic isolator (2004)
Heart Interface Freedom 20 battery charger/inverter (1997)
1 x 270 amp house battery bank alternator (2013)
1 x 80 amp engine battery alternator (2004)
Alternators are dual purpose for each battery bank if necessary
2 x 12 volt outlets at navigation station
Bow and stern navigation lights replaced (2004)

Electronics

All navigation electronics are networked and were replaced new in 2004 as follows
Garmin 3210 GPS Chart Plotter, with color display at chart table with Garmin radar
ST7001 Raymarine autopilot
Raymarine autopilot head replaced (2010)
Autopilot head at helm, remote under dodger at companionway
ST60 Raymarine instruments include wind, depth, speed and rudder angle with displays located at the companionway
Bulkhead, luminated compass at navigation station
ICOM M604 VHF with digital select calling at navigation station with command mike at helm and under dodger at companionway (2010)
ICOM M802 SSB at navigation station with insulated backstay antenna
Samsung, flat screen, LCD TV remote display located on main bulkhead
Chart plotter, radar, DVD, TV and computer screen can be displayed on the flat screen (2004)
Dockside cable hook up

Rig

Aluminum mast with 2 sets of spreaders (1999)
Seperate trisail track
1 x 19 stainless steel standing rigging
Fore and aft lowers and intermediate uppers standing rigging replaced (2012)
Cap shroud aluminum protectors
Chain plates rebedded (2012)
Quick release inner forestay (1999)
Aluminum boom (2010)
Aluminum adjustable jib pole stored on a Harken track on forward side of mast
Hydraulic back stay
Harken roller furling (1999) for headsail
2 x Spinlock XT line stoppers on mast

RUNNING RIGGING

Mostly replaced (2010)

2 x jib halyards
2 x spinnaker halyards
1 x staysail halyard
1 x mainsail halyard
Lazy jacks

SAIL INVENTORY

Mainsail, UK with full battens on Antal cars, Dacron, 2 reefs (2010)

135% genoa UK Dacron RF (2010)

95% jib UK Dacron RF (2010)

Staysail UK Dacron (2010)

150%, 1.5% Drifter Reacher, Rolly Tasker (2012)

Dacron Mainsail with dutchman system and Antal cars
Spinnaker, 2.2oz, serviceable, Hood loft
Storm trisail, Hood loft.

Equipment

1 x 65LB CQR anchor
1 x 35LB Danforth anchor
240' of chain and 250' of rode
Viking 8 man life raft (2004) with hydrostatic release in a solid cannister stored on deck fwd of the companionway in a stainless steel cradle
2 x 5,200 BTU, Mermaid, reverse cycle, central air conditioning units runs off shore power and when engine is running
Dodger (2010)
Bimini (2010)
Mainsail cover (2010)
Deck awning for aft of the mast (2005)
Deck awning for forward of the mast (2005)
Canvas hatch awnings to boost air flow below deck and resist rain showers
Poly Planner stereo system with CD, hooked to Garmin for XM. 4 separate zones with independent controls and i-pod units
XM satellite radio and weather(subscription does not convey)
Cockpit and saloon speakers
Teak cockpit table (2013)
Fitted sheets for each bunk
Cockpit cushions
